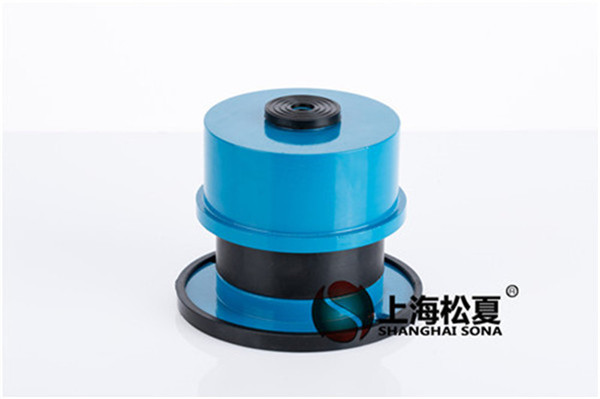

ZTA型阻尼彈簧減震器

ZTA型阻尼彈簧減震器特性：

各種震動產生噪聲音，影響周圍環境，危害人體健康，破壞建筑物，降低設備加工精度，影響儀器，特別是高級貴重儀器使用效果，產生震動，機器本身亦受到震動破壞，縮短使用壽命。因此消除震動，保護建筑物，機械設備，保護環境，防止公害，用彈性之元件隔離震動是防止震動傳遞的一種理想方法。

本廠減震器設計是吸收國內外鋼彈簧減震器特性，克服其阻尼比小時，容易產生共振現象，提高阻尼比0.15~0.18，（國內最大阻尼為是0.085）而隔震率不降低是國內近年來鋼彈簧減震設計上的一重大突破。同類產品處于領先地位，因此本減震器具有鋼彈簧減震的低頻特征，可使高、中、低干擾頻率獲得隔振效果，同時又具有橡膠減震器阻尼比大特點，能有消除鋼彈簧的特有共振現象。因此設備運轉時開車與停車無激震（振幅A=0.01mm）停車時間為1.6秒，設備安裝減震后，隔振效果》85%，開。停車能迅速越過共振區，平穩不搖晃。使用本減震器，可以使設備安裝時間大為縮短，不必繞住大型混合土基，能承載設備總重量，地面，樓板，平臺均可，并可以不用地腳螺栓固定，是一種簡單，快捷合理，經濟等多功能通用性廣的高效減震器，本廠減震器之彈簧是選用優質的60Si2Mn彈簧鋼材，耐疲勞、強度高、承載力大、使用壽命長。

ZTA damped spring damper

Characteristics of ZTA type damping spring shock absorber:

All kinds of vibration produce noise, affect the surrounding environment, harm human health, damage to buildings, reduce the processing accuracy of equipment, affect the instrument, especially the advanced expensive instrument

The use effect of the machine produces vibration, and the machine itself is damaged by vibration, which shortens the service life.So eliminate vibrations, protect buildings, machinery, protect the environment

It is an ideal method to prevent vibration transmission by using elastic components to prevent public hazards.

The shock absorber design of our factory is to absorb the characteristics of steel spring shock absorbers at home and abroad, to overcome the small damping ratio, easy to produce resonance phenomenon, increase the damping ratio of 0.15~0.18, (the maximum damping is 0.085 in China) and the isolation ratio is not reduced is a major breakthrough in steel spring shock absorption design in China in recent years.Similar products are in the leading position, so this shock absorber has the low-frequency characteristics of steel spring shock absorption, which can achieve vibration isolation effect with high, medium and low interference frequency, and has the characteristics of large damping ratio of rubber shock absorber, which can eliminate the unique resonance phenomenon of steel spring.Therefore, when the equipment is running, the stopping time is 1.6 seconds without shock (amplitude A=0.01mm). After the equipment is installed with shock absorption, the vibration isolation effect is 85%.Parking can quickly cross the resonance zone, smooth without shaking.Use of this shock absorber, can make the equipment installation time greatly shortened, don't have to round large mixed soil base and bearing equipment, the total weight to the ground, floor, platform, and don't have to anchor bolt is fixed, is a kind of simple, fast and reasonable, economic high efficiency multifunctional wide generality such as shock absorber, the factory 60 si2mn shock absorber spring is made of high quality spring steel, fatigue resistance, high strength, large loading, long service life.
